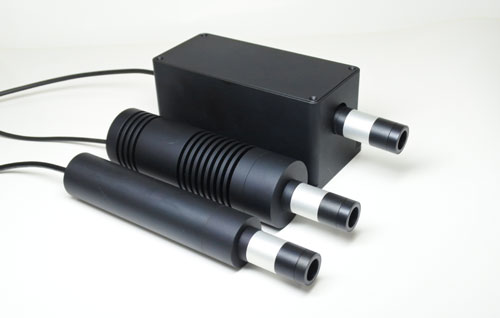

TTG50TEC, CYL35TEC, CYL25TEC

▶ 635 ~ 350mW, 660 ~ 350mW, 670 ~ 100mW, 685 ~ 50mW

▶ TEC cooler를 이용, 광출력 stability < ± 1%

▶ TTL Modulation option : > 2 MHz

▶ 빔패턴 : Dot, Line, Cross, Circle, Multi-line etc.

▶ 포커싱 가능 형태

▶ Input : DC 5 ~ 24 V

▶ Dimension : 67 × 167 × 55 mm, ∅35 × 150 L, ∅25 × 150 L

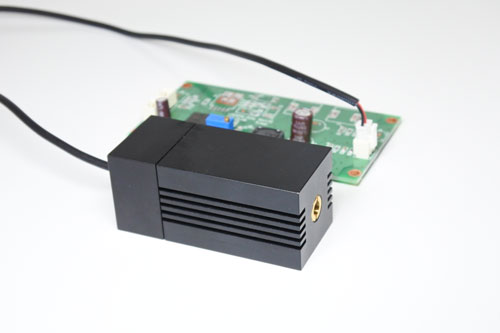

                        TTG40

▶ 635 ~ 350mW, 660 ~ 350mW, 670 ~ 100mW, 685 ~ 50mW

▶ 빔패턴 : Dot

▶ Input : DC 5 ~ 12 V

▶ TTL Modulation option : > 2 MHz

▶ Dimension : 30 × 68 × 30 mm

CYL20ADJ, CYL16ADJ, CYL15ADJ CYL14ADJ, CYL12ADJ

▶ 635 ~ 120mW, 660 ~ 150mW, 670 ~ 100mW, 685 ~ 50mW

▶ TTL Modulation option : > 200 kHz

▶ 빔패턴 : Dot, Line, Cross, Circle, Multi-line etc.

▶ 포커싱 가능 형태

▶ Input : DC 3 ~ 5  V

▶ Dimension : ∅20 × 120 L, ∅16 × 62 L,∅15 × 80 L,∅14 × 62 L

                        ∅12 × 55 L

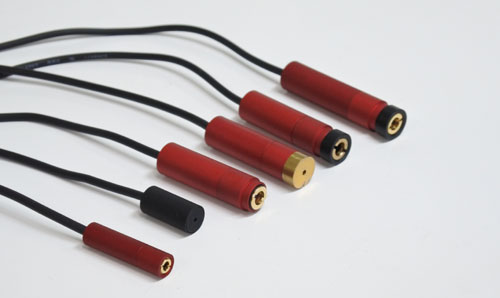

CYL12ADJ, CYL12, CYL10, CYL8

▶ 635 ~ 20mW, 650 ~ 10mW, 660 ~ 20mW, 670 ~ 20mW

    685 ~ 20mW

▶ 빔패턴 : Dot, Line, Cross, Circle, Multi-line etc.

▶ 포커싱 가능 또는 고정형태

▶ Input : DC 3 ~ 5 V

▶ Dimension : ∅12 × 45 L, ∅12 × 37 L, ∅10 × 20 L, ∅8 × 32 L

          BH9, BH8, BH6.4, BH6

▶ 635 ~ 1mW, 650 ~ 5mW, 670 ~ 5mW, 685 ~ 5mW

▶ 빔패턴 : Dot, Line, Cross

▶ 포커싱 가능 형태

▶ Input : DC 3 V

▶ Dimension : ∅9 × 25 L, ∅8 × 13 L, ∅6.4 × 15 L, ∅6 × 12 L
